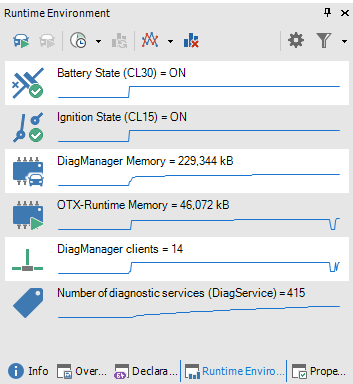

The Runtime Environment Window provides useful information about the OTX-Runtime API and the OTX-DiagManager API during the execution of a procedure. This gives an overview of the current state of the runtime environment.

Note: If the window is not visible, it can bis switched on inside "Display" tab.

Control	Type	Description
Vehicle Communication	`StateIcon`	Status of communication with the vehicle.
Start/Stop DiagManager	`Button`	Start or stop the OTX-DiagManager API. For Experts only: The OTF starts and stops the DiagManager automatically.
Update Time	`ComboButton`	Setting how often the values in the window will be updated. Possible values are: Fast: The values are updated approximately every 200 ms. Note: This value puts the greatest strain on the system. Normal: The values are updated approximately every second. Slow: The values are updated approximately every 3 Seconds updated. Manual: The values are only updated by clicking on the `button` on the right.
Update Values	`Button`	In manual mode, the values are updated here.
Diagramm Type	`ComboButton`	Setting how the values are displayed. Possible values are: Numeric Values: The values are represented as a number. Note: This takes up the least space. Column Charts: The values are displayed as bars. Line Charts: The values are displayed as lines.
Reset Charts	`Button`	The collected values of all charts are deleted.
Runtime Settings	`Button`	Opens the see Runtime Environment Settings window.
Value Type Filter	`ComboButton`	Selection of which information should be displayed. Possible values are: Battery State: State of clamp 30 (ON/OFF). Ignition State: State of clamp 15 (ON/OFF). DiagManager Memory: Memory of the DiagManager process. OTX-Runtime Memory: Memory of the OTX-Runtime process. DiagManager Clients: Number of connected to the DiagManager Clients. Number of DiagServices: Number of DiagServices transferred.
