Diagnostics over IP (DoIP)

Table of Contents

• Basic Sequence
• Pseudo Code Example

The DiagManager supports the diagnostic communication over Internet Protocol (DoIP), see ISO 13400-2. The following section describes how a DoIP communication can be established.

Basic Sequence

The OTX ComInterface extensions provides all actions and terms to establish a DoIP communication. The following diagram shows the basic sequence.

Note: For DoIP communication the Extended Mode is necessary, see Communication Modes. The DiagManager can switch implicit to the right mode.

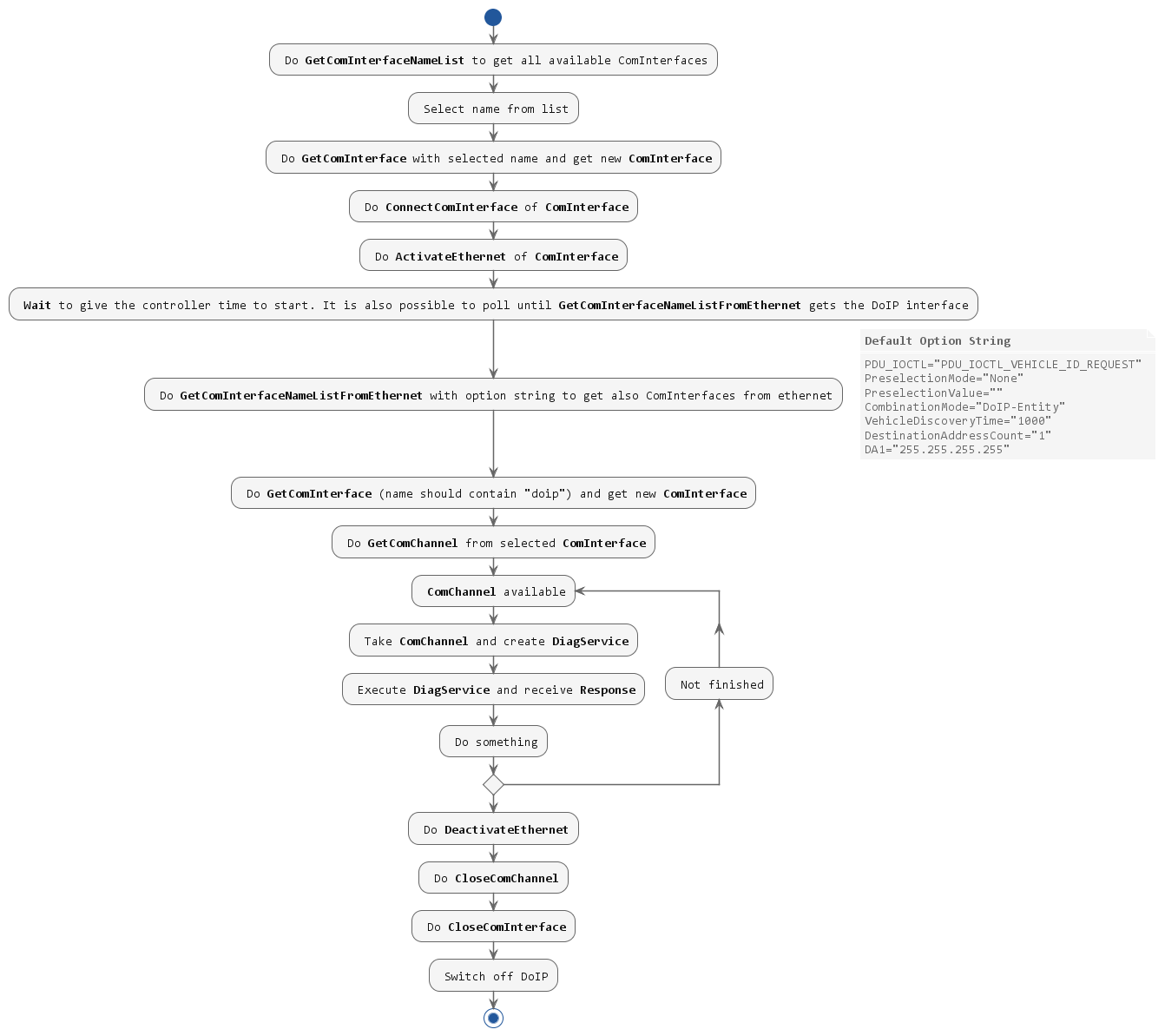

Basic sequence to establish a DoIP communication

Pseudo Code Example

The basic proceeding how to establish a DoIP communication is described in the following pseudo code example.

// Pseudo-Code example to establish a DoIP communication
// =====================================================
// Please note that the exact syntax of C++, DotNet and Java is different!

void main()
{
    // Sets a valid license key to active the DiagManager Server
    OpenTestSystem.Otx.DiagManager.SystemApi.Util.SetLicenseKey(8888, Constants.LICENSE_KEY);

    // Creates the OtxDiagApi of the DiagManager client, DiagManager has being started
    OpenTestSystem.Otx.DiagManager.OtxDiagApi.IOtxDiag otxDiag = OpenTestSystem.Otx.DiagManager.OtxDiagApi.OtxDiagFactory.CreateSocketOtxDiag(8888);

    // Creates the NoneOtxDiagApi of the DiagManager client
    OpenTestSystem.Otx.DiagManager.NoneOtxDiagApi.INoneOtxDiag noneOtxDiag = OpenTestSystem.Otx.DiagManager.NoneOtxDiagApi.NoneOtxDiagFactory.CreateSocketNoneOtxDiag(8888);

    // Gets the ComInterface (OTX Extension) from DiagManager
    OpenTestSystem.Otx.DiagManager.OtxDiagApi.IComInterface comInterface = otxDiag.ComInterface;

    // Gets the DiagCom (OTX Extension) from DiagManager
    OpenTestSystem.Otx.DiagManager.OtxDiagApi.IDiagCom diagCom = otxDiag.DiagCom;

    // Gets all available ComInterfaces (MCDInterface) as a list of String
    List<String> comInterfaceNames = comInterface.GetComInterfaceNameList();

    // Gets the ComInterface from the given name, whose Long-Name contains "connectiontype". Assume in this example, otxComInterface.LongName contains "connectiontype"
    OpenTestSystem.Otx.DiagManager.OtxDiagApi.DataTypes.IComInterface otxComInterface = comInterface.GetComInterface(comInterfaceNames[0]);

    try
    {
        // Connect to the selected ComInterface
        comInterface.ConnectComInterface(otxComInterface);

        // Activate the activation line
        comInterface.ActivateEthernet(otxComInterface);

        // Wait to give the controller time to start. The waiting time depends on machine and environment variables.
        // It is also possible to poll until GetComInterfaceNameListFromEthernet gets the DoIP interface
        Thread.Sleep(8000);

        // Gets all available ComInterfaces (MCDInterface), including the ComInterface from Ethernet, as a list of String
        List<String> comInterfaceNamesFromEthernet = comInterface.GetComInterfaceNameListFromEthernet(null, "PDU_IOCTL='PDU_IOCTL_VEHICLE_ID_REQUEST' PreselectionMode='None' PreselectionValue='' CombinationMode='DoIP-Entity' VehicleDiscoveryTime='1000' DestinationAddressCount='1' DA1='255.255.255.255'");

        // Gets the ComInterface from the given Name, whose Long-Name contains "doip". Assume in this example, otxComInterfaceFromEthernet.LongName contains "doip"
        OpenTestSystem.Otx.DiagManager.OtxDiagApi.DataTypes.IComInterface otxComInterfaceFromEthernet = comInterface.GetComInterface(comInterfaceNamesFromEthernet[1]);

        // Connect to the selected ComInterface
        comInterface.ConnectComInterface(otxComInterfaceFromEthernet);

        // Sets the interface for DoIP in normal mode
        noneOtxDiag.SetPreferedInterface(otxComInterfaceFromEthernet.ShortName);

        // Gets the ComChannel
        OpenTestSystem.Otx.DiagManager.OtxDiagApi.IComChannel comChannel = comInterface.GetComChannel("LL_Gateway", "", true);

        // Gets the ComChannel - Alternative for extended mode - NoneOtxDiagApi.SetPreferedInterface is not necessary here
        // OpenTestSystem.Otx.DiagManager.OtxDiagApi.IComChannel comChannel = comInterface.GetComChannelFromComInterface(otxComInterface, "LL_Gateway", "", true);

        // Creates a DiagService
        OpenTestSystem.Otx.DiagManager.OtxDiagApi.IDiagService diagService = diagCom.CreateDiagServiceByName(comChannel, "ReadSparePartNumber");

        // Execute the DiagService
        diagCom.ExecuteDiagService(diagService);

        // Close the ComChannel and release all resources
        diagCom.CloseComChannel(comChannel);
    }
    catch (OpenTestSystem.Otx.DiagManager.OtxDiagApi.DataTypes.DiagRuntimeException e)
    {
        throw e;
    }
    finally
    {
        // Release the activation line
        comInterface.DeactivateEthernet(otxComInterface);

        // Close ComInterface
        comInterface.CloseComInterface(otxComInterface);
    }
}
