Diagnosic Runtime System

For the following OTX extensions, a standardized diagnostic runtime system (MVCI server) according to ISO 22900-3:2012 is required:

• BusMonitoring
• ComInterface
• DiagCom
• DiagComPlus
• DiagConfiguration
• DiagDataBrowsing
• DiagDataBrowsingPlus
• EcuConfiguration
• EcuStateChart
• VehicleInfo

We support diagnostic runtime systems from the following vendors:

• Volkswagen
• DSA
• ACTIA IME
• SIEMENS

Note: Please contact us if you are using a diagnostic runtime system that is not listed above.

Note: The ODX files required by the diagnostic runtime system usually need to be converted into a runtime format beforehand. The converter is provided by the manufacturer of the diagnostic runtime system.

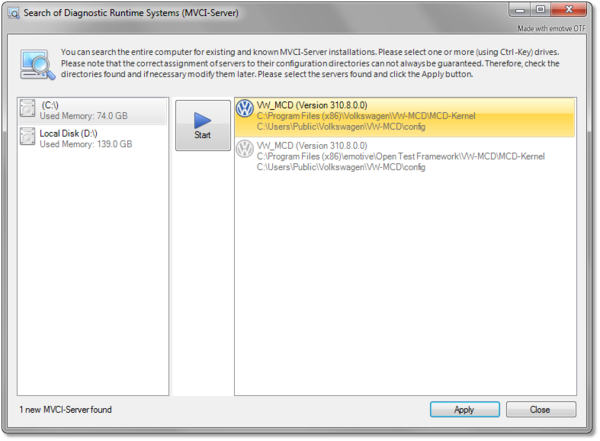

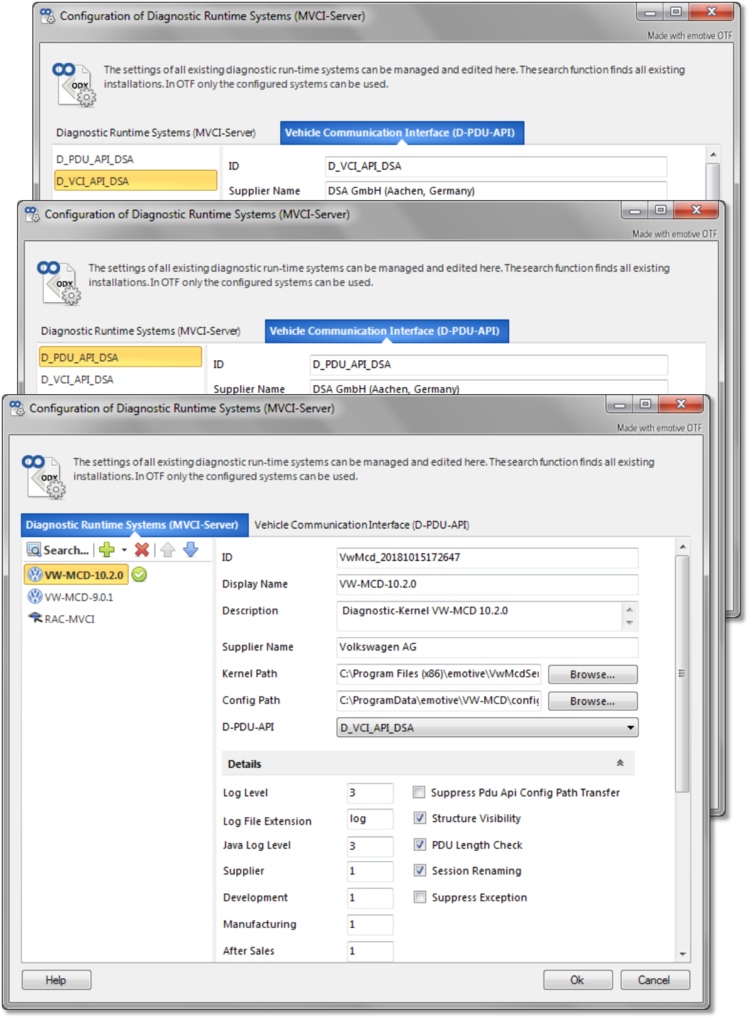

Note: To use a diagnostic runtime system, it must be configured in advance, see Runtime Environment Settings.
